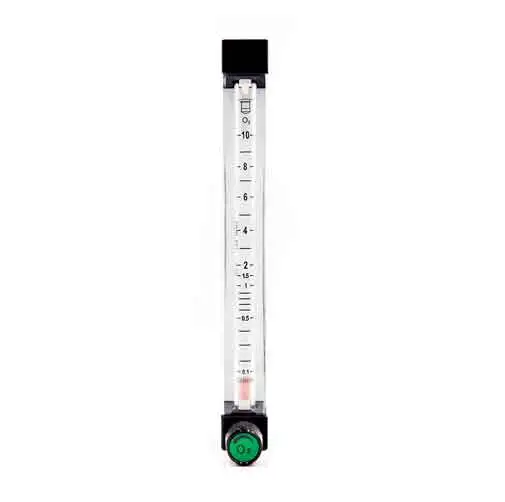

10L Oxygen Flowmeter

Name: 10L Oxygen Flowmeter
Brand: RHC Medical

The single 10L oxygen mechanical flow meter is commonly used in portable anesthesia machine, veterinary anesthesia machine and Boyle’s apparatus device. This medical flowmeter displays readings through a float and has good air tightness, accuracy and stability.

Inquiry Now

Specification of 10L Oxygen Flowmeter

Flow range:	（0.1-1）L/min;（0.1-4）L/min; （0.1-5）L/min;（0.1-10）L/min;
Gas:	O2/AIR/N2O/CO2
Accuracy:	grade 4.0 or ±10%FSC(p=1013hPa,T=20±3°C)
Float:	ball float or rotating float
Inlet pressure:	20kPa or 200kPa
Leakage test:	≤5ml/min@200kPa
