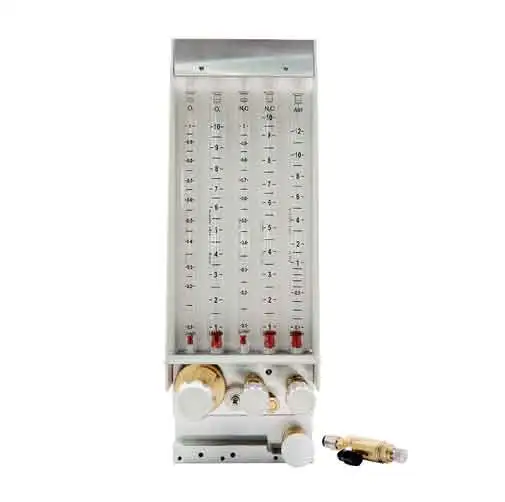

Five Tubes Flowmeter

Name: Five Tubes Flowmeter
Brand: RHC Medical

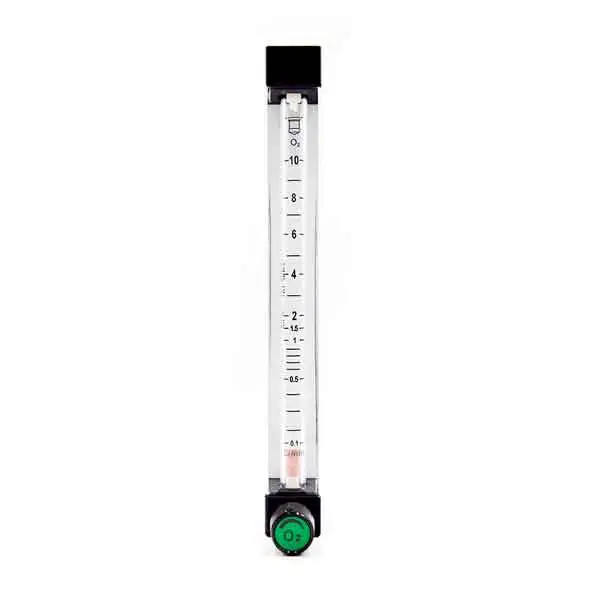

Float flow meter, also named Thorpe or variable orifice tube, has a conical shape inside and its diameter gradually increases from the bottom to the top; This medical flowmeter consists of a graduated tube, regulating valve and float, which remains suspended due to constant pressure.

Inquiry Now

Specification of Five Tubes Flowmeter

Flow range:	O2:(0.1-10)L/min; N2O:(0.1-10)L/min； AIR:(0.1-12)L/min
Gas:	O2/AIR/N2O
Accuracy:	±10%FSL(p=1013hPa,T=20±3°C)(Each flow tube shall be calibated to ±10% of the indicated value for flow rates between 10% and 100% of full scale)
Float:	rotating float
Oxygen Concentr-ation	21%-29%
Leakage test:	≤5ml/min@200kPa

Features of Five Tubes Flowmeter

Advanced technology:

Continuously innovated and developed a unique fission valve technology with organic polymer materials of this medical flowmeter. This technology greatly improves the reliability and accuracy of anesthesia flowmeter.

Reliable:

With more than 300 imported equipment, our products have sold to more than 20 countries with over 10,0000 sets, and the annual output value is more than 50 million.

After sales:

Quality problems can be refunded or remade, and 24-hour after-sales service support is provided to ensure customer satisfaction.
