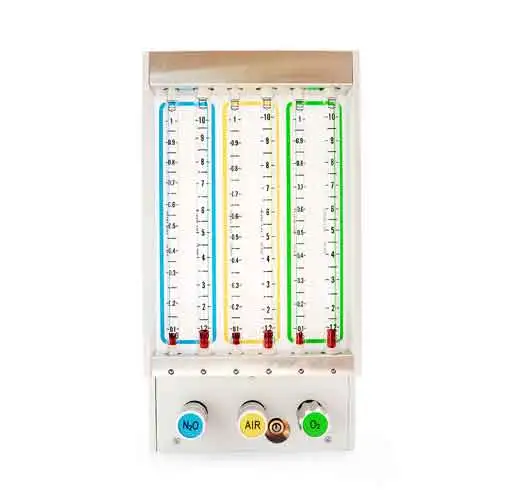

Six Tubes Flowmeter

Name: Six Tubes Flowmeter
Brand: RHC Medical

The flow meter is the component of the anesthesia machine that measures the flow of gas between the machine’s output and the patient. They are usually graduated in ml/min and l/min and there are flow meters for air, oxygen, carbon dioxide and nitrous oxide with different colors marked.

Inquiry Now

Specification of Six Tubes Flowmeter

Flow range:	O2:(0.1-10)L/min; N2O:(0.1-10)L/min； AIR:(0.1-10)L/min
Gas:	O2/AIR/N2O
Accuracy:	±10%FSL(p=1013hPa,T=20±3°C)(Each flow tube shall be calibated to ±10% of the indicated value for flow rates between 10% and 100% of full scale)
Float:	rotating float
Oxygen Concentr-ation	25%-35%
Leakage test:	≤5ml/min@200kPa

Features of Six Tubes Flowmeter

Multiple types:

There are standard flow meters and customized types, available in metal and acrylic materials. Flowmeters with different ranges and gas sources can meet the needs of most customers.

Supply capacity:

We cooperate with well-known companies in the industry such as GE, Mindray, Drager, Aeonmed, etc., and have rich experience in design customization and strong production and supply capabilities.

Medical standards:

Our products fully comply with the requirements of ISO13485 standard, medical raw materials preferred, and provide high-quality products to global customers.
