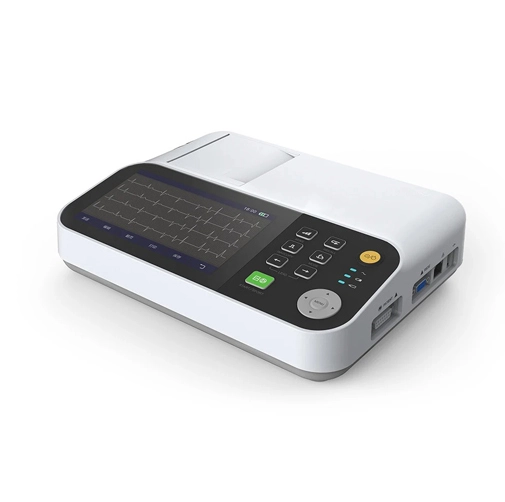

Veterinary Monitor ECG3

Comprehensive Monitoring: The Veterinary Monitor ECG3 by RHC Medical offers a complete data display, ensuring that all vital information is readily available for accurate diagnosis and monitoring. This feature enhances its utility among veterinary monitors for sale.

Enhanced Signal Clarity: The monitor employs full digital filtering to eliminate noise and artifacts, providing clear and precise ECG readings. This ensures reliable data for better clinical decisions.

Detailed Documentation: With high-resolution printing capabilities, the ECG3 allows for detailed and accurate printouts of ECG data. This feature is essential for maintaining comprehensive patient records and facilitating thorough analysis.

Improved Safety and Accuracy: The floating input circuit design enhances patient safety and ensures accurate signal acquisition by minimizing interference and electrical noise.

Robust and Reliable: The ECG3 is designed to withstand the effects of defibrillation, ensuring continuous and reliable monitoring even during emergency interventions.

Clear Visualization: Featuring a 7-inch display, the monitor provides clear and easy-to-read visualizations of ECG data, enhancing user experience and efficiency.

Stable Performance: With a voltage tolerance of ±500mV, the ECG3 ensures stable and accurate readings, even in varying electrical conditions.

Consistent Signal Quality: A time constant of ≥3.2s ensures consistent signal quality, providing reliable data for accurate diagnosis.

Wide Range Detection: The monitor has a frequency response range of 0.05Hz to 165Hz, allowing for the detection of a wide range of cardiac signals.

High Sensitivity: With an input impedance of 50M (10Hz), the ECG3 is highly sensitive, ensuring accurate signal acquisition.

Low Interference: The input circuit current is ≤50nA, minimizing interference and ensuring precise readings.

Enhanced Safety: The patient auxiliary current is <10A, ensuring patient safety during monitoring.

High Noise Rejection: With a Common Mode Rejection Ratio (CMRR) of >60dB, the monitor effectively rejects common-mode noise, providing clear and accurate ECG signals.

High Precision: The monitor features a 12-bit A/D resolution, ensuring high precision in data acquisition and analysis.

Comprehensive Lead Monitoring: The ECG3 supports simultaneous 12-lead acquisition, providing a comprehensive view of the patient’s cardiac activity.
